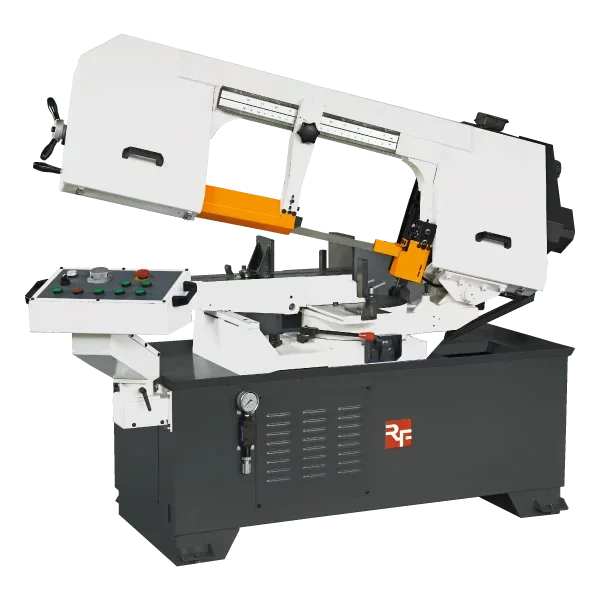

13” Semi Auto Metal Band Saw
RF-335

Large sized, heavy duty semi auto workshop bandsaw with upgrade options for cutting various types of pipe & bar efficiently.

13"

Add to Inquiry

Cutting Capacity

0°

13"
330mm

8.85" x 20.86"
225 x 530mm

13" x 13"
330 x 330mm

45°

10.8"
275mm

10.8" x 11.8"
275 x 300mm

10.8" x 10.8"
275 x 275mm

Features

RF-335

Cast Wheels & Base with Heavy Gauge Steel Saw Bow
Easy To Operate Control Panel
Heavy Duty Cast Machine Base & Cast Blade Wheels for Rigidity & Stability
4 Step Pulley Heavy Duty Gearbox
Large Scale for Easy Counter Blade Guide Position Setting
Carbide Guide with Bearings for Increased Stability, Extended Blade Life, & Reduced Consumables Cost
Lead Screw & Rack Vise System Provide Quick & Firm Clamping
Adjustable Blade Guide Arm for Increased Work Piece Precision & Extended Saw Blade Life
Clamping Vise Available for Angle Cutting (0º – 45º)
Suitable for Cutting Tubes, Profiles, Solids Bars, Ferrous & Nonferrous Materials
Coolant System for Wet Cutting
Wide Chip Tray with Filter net for Easy Chip Collecting & Cleaning
Comes with bi-metal blade, chip brush & length stop set

RF-335RV

Swivel + Variable Speed

RF-335RVAA - Semi Auto Saw Bow Lifting

Hydraulic Vise
Saw Bow Lifting

Specification

Accessories

Specification

Item	RF-335	RF-335RV	RF-335RVAA
Main Motor HP	3 (2.2kw)(3-phase)	3 (2.2kw)(3-phase)	3 (2.2kw)(3-phase)
Speed MT/min	60HZ / 25, 40,56, 85	60HZ / 25~90	60HZ / 25~90
Speed Ft/min	60HZ / 82, 131, 183, 278	60HZ / 82~295	60HZ / 82~295
Saw Blade mm (WxTxL)	34×1.1×4100	34×1.1×4100	34×1.1×4100
Saw Blade inch (WxTxL)	1-3/8×0.043×161.4	1.34×0.043×161.4	1.34×0.043×161.4
Machine Dimensions mm (LxWxH)	2200x860x1360	2200x860x1240	2200x860x1240
Machine Dimensions inch (LxWxH)	86.6×32.5×55	86.6×32.5×55	86.6×32.5×55
Packing Dimensions mm (LxWxH)	2200x830x1160	2200x825x1400	2200x825x1400
Packing Dimensions inch (LxWxH)	88.5×32.5×55	86.6×32.5×55	86.6×32.5×55
Machine Weight NW/GW	580/640 kgs 1275/1410 lbs	700/760 kgs 1540/1670 lbs	700/760 kgs 1540/1670 lbs
No.of Machines Packed in 20″ container	7 sets / SKD 14 sets	7 sets / SKD 14 sets	7 sets / SKD 14 sets
No.of Machines Packed in 40″ container	14 sets/ SKD 28 sets	14 sets/ SKD 28 sets	14 sets/ SKD 28 sets
