Mill drill machines come in different sizes, types and configurations that suit different roles in machinist workshops. Let’s have a look at the range of tabletop, upright, radial and swivel head OEM mill drill machines that are trending for 2025
Table of Contents
What are the standard types of OEM mill drill machines?
Mill drill machines come in two types by size and installation, floor and tabletop mounted, and either of these can be equipped with upright fixed head or swivel head mill drills. Upright mill drills traditionally have a flat, vertical, surface mount with no lateral movement of the mill drill head.

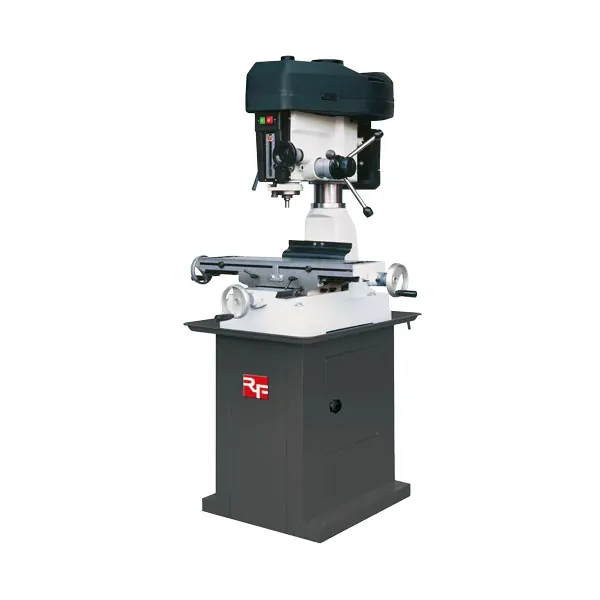

Modern cylindrical column mounts, as seen for the floor mounted RF-500 and benchtop RF-31 above, are a popular choice because they can allow the work table or mill drill head to be rotated laterally, which facilitates bit changing. Radial drill arms are offered for both flat and cylindrical columns to improve reach and drilling workflow for larger and unwieldy workpieces.
To meet the demands of the wide range of niche markets for the different types of mill drill in 2025, OEM manufacturers usually maintain a catalogue of all types of mill drill machine in both fixed head and swivel head versions, including cylindrical columns and radial mill drill heads.
What are emerging trends for 2025 in customer preferences for OEM mill drill machines?
A trend for 2025 is the growth of multi-purpose mill drill machines that are suitable for a wider range of workshop roles, making swivel head machines a popular alternative to fixed head machines with light commercial customers and consumers. We also see more cylindrical column mill drills on the market, for manufacturing cost reasons as well as the added lateral rotation capabilities.
OEM mill drill manufacturers have to respond to the market demand for a wide range of sizes, capacities and capabilities for the full range of potential users, from hobbyists to commercial workshops. This makes it essential to be able to offer a comprehensive range of mill drill machines that vary in size from smaller tabletop machines through to heavy duty free-standing installations.
What are the features of fixed head, radial and swivel head mill drill machines?
Drills and mill drill machines for OEM manufacturers come in three standard configurations described by the way the mill drill head is mounted on the stand. The three main types are fixed head, radial, and swivel head mill drill machines, and each have specific features and benefits which we will describe here. Fixed head mill drills include cylindrical column mounted mill drills and flat surface mounted mill drills.
- Fixed head
- Radial
- Swivel head
What is a fixed head mill drill machine?

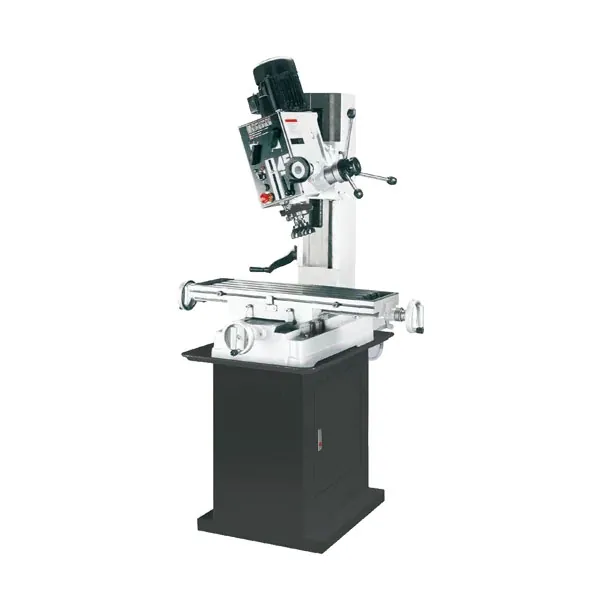

Fixed head mill drill machines, like the RF-45 shown above, have a very rigid structure, with the mill drill head fixed in an upright position to the chassis. The workpiece is clamped to a table that can be moved laterally for precision milling. These are the gold standard for conventional milling and drilling in most workshops.
Fixed head machines are popular because they can be made exceptionally rigid for very high positional accuracy. They are limited by the distance between the bit and the column, and to work at an angle the workpiece needs to be moved, requiring careful clamping.

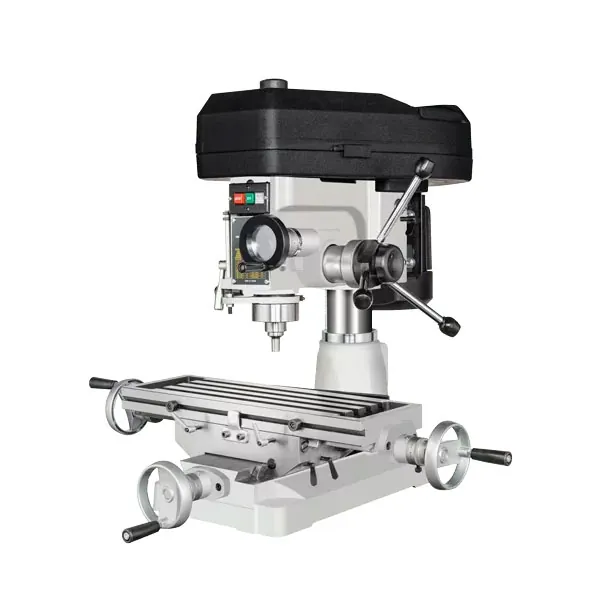

Fixed head mill drill machines are also manufactured with cylindrical column mounts, like the Rong Fu RF-25 shown above. These usually allow for the head to be rotated laterally, this gives some of the benefits of the radial drill press while keeping the precision machining benefits of the mill drill. Cylindrical column mill drills can be rotated for ease of bit changing as well as to enable work on irregular workpieces, like the radial drill described below.
What is a radial drill press?

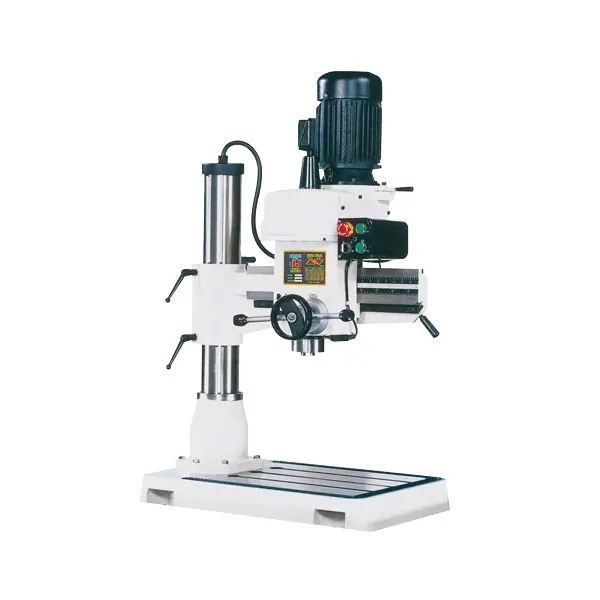

The RF-35 bench mounted radial drill shown above is a typical example of a high quality, heavy duty radial drill used for optimizing workflow when drilling multiple holes in heavy or unwieldy workpieces. The length of the radial drill arm allows drilling further from the edge of the workpiece than would be possible with a standard pillar mill drill machine of the same rating.
A benefit of bench mounted radial drills is that when working with a very heavy, large, or cumbersome workpiece the accuracy of cuts is unaffected by the weight of the workpiece. A conventional knee mill or drill table tends to sag under load, making bench mill drills a popular alternative for larger projects.
Radial drills are not as commonly used for milling, as the distance between the drill head and the stand increases the likelihood of vibration and chatter when milling, but with care a high quality radial drill can be used for some milling tasks as well as drilling holes. When choosing a mill drill or drill press a radial drill is a good choice if you often work with large workpieces.
What are the advantages of a swivel head mill drill machine?

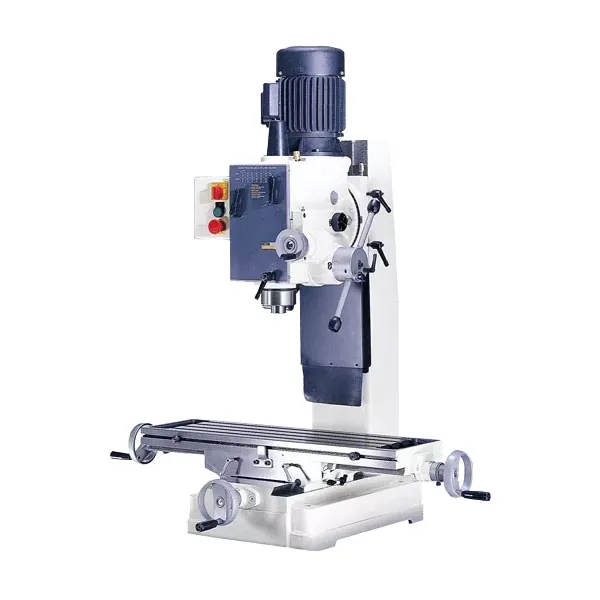

The Rong Fu RF-45 shown above is an example of a fully featured tabletop fixed head mill drill machine, with a swivel head for versatile milling capabilities. The swivel head mill drill machine adds the ability to angle the cutter away from the vertical axis. With a fixed head mill drill, the workpiece needs to be reoriented and carefully clamped each time to mill and drill slots, faces and holes at different angles.
The swivel head mill drill enables you to keep the workpiece securely clamped to the work table while cutting and drilling at multiple different angles to the horizontal. This speeds up workflow because it reduces the number of times the workpiece needs to be moved and clamped, and reduces the risk of errors with complex and multi-angle cuts.
Discover Rong Fu OEM mill drill machines designed for 2025
We are an OEM mill drill machine manufacturer based in Taiwan, home of high quality OEM engineering. We manufacture mill drill machines of all types using a versatile Toyota Production System (TPS) production facility and flexible shipping systems. This gives us the capability to match any OEM mill drill single or mixed batch requirement, rapidly and efficiently.
Rong Fu mill drills are available in belt or gear driven versions, with a variety of options for control systems and accessories depending on the desired use and OEM customer requirements. Powered downfeeds, lubrication systems and work lights, workpiece stands and different clamping systems are all useful options to have available to complete a full lineup of mill drills in your customer catalog.
Contact us to discover how we can supply you with a comprehensive range of high quality mill drill machines designed to match the needs of customers from all niche markets in the 2025 OEM mill drill manufacturing ecosystem.
