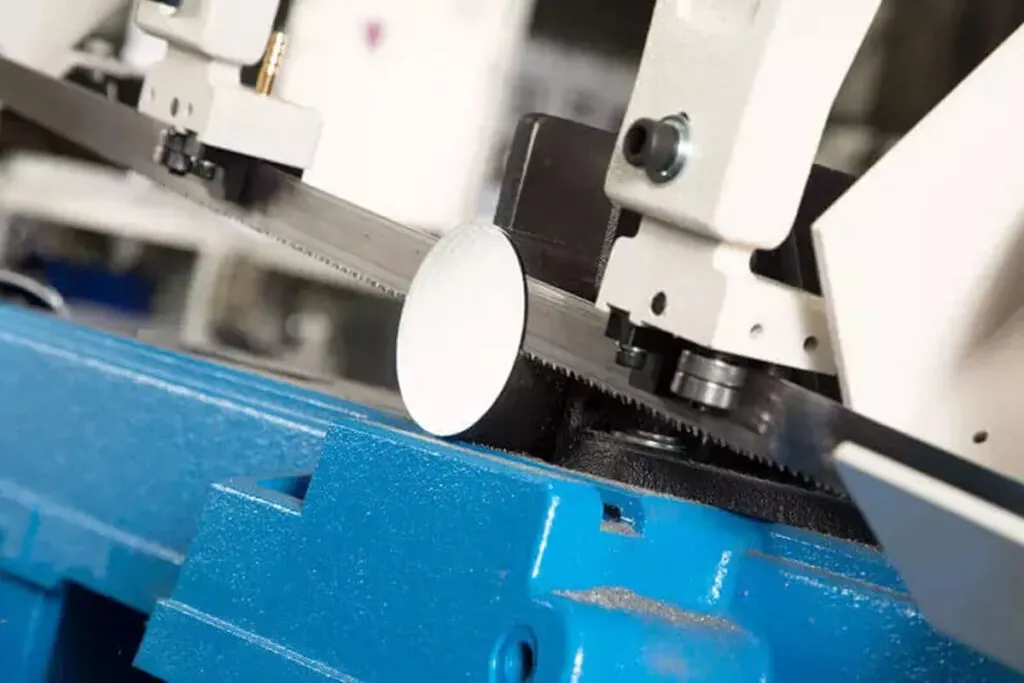

Definition of Band Saw Cut Surface Finish
For most industrial applications, band sawing produces a surface finish in the range of Ra 3.2 to Ra 12.5 micrometers, which is sufficient for subsequent machining but not typically a finished surface. Optimizing blade selection and cutting parameters allows operators to achieve consistent, predictable surface texture that minimizes downstream machining allowances, reduces material loss, and lowers overall production cost per part.
Why it matters for Band Saw and Mill Drill Machines
Surface finish also serves as a process quality indicator. A consistent, regular surface texture confirms correct blade selection, adequate tension, and appropriate feed rate. An irregular or heavily striated surface typically indicates blade wear, excessive feed rate, or guide misalignment, allowing operators to identify and correct deviations before they impact downstream operations or final part quality.
For applications involving pre-finished stock, architectural metals, or materials with strict incoming inspection criteria, band saw cut surface finish may be a primary specification rather than a secondary consideration. In these cases, fine-tooth blades, reduced feed rates, and flood coolant are applied together to achieve the required Ra value. Documenting baseline surface finish data for each material and blade combination allows production teams to establish reliably repeatable cutting conditions.
FAQ
What surface finish can be expected after band sawing?
The band saw cut surface finish achievable in industrial operations typically falls in the Ra 3.2 to Ra 12.5 micrometer range, depending on material, blade specification, and cutting parameters. Coarse-pitch blades cutting at high feed rates produce rougher surfaces, while fine-pitch blades running at optimized speed and reduced feed rate generate smoother results. For ferrous materials, bi-metal blades with 3 to 6 TPI generally produce Ra 6.3 to Ra 9.5 surfaces under standard conditions. For non-ferrous materials such as aluminum alloys, finer-pitch blades can achieve Ra 3.2 or better. Flood coolant and correct blade tension are additional factors that improve band saw cut surface finish consistency across extended production runs.
How does blade tooth pitch affect the band saw cut surface finish?
Tooth pitch is one of the primary variables controlling band saw cut surface finish. A finer tooth pitch, expressed as a higher TPI value, produces a smoother surface because more cutting edges engage the workpiece per unit length of cut, reducing the depth and spacing of individual tool marks. However, excessively fine pitch relative to material cross-section thickness causes chip packing in the gullets, leading to tooth stripping and rapid surface finish deterioration. Coarser pitch removes material more aggressively but leaves a more pronounced striated texture on the cut face. For optimal band saw cut surface finish, tooth pitch should be selected so that a minimum of 3 to 6 teeth remain in contact with the workpiece at all times during the cut.
What cutting parameters should be adjusted to improve band saw cut surface finish on hardened steel?
Improving band saw cut surface finish on hardened or tough steels requires a combination of parameter adjustments. Reducing feed rate lowers chip load per tooth, which decreases surface roughness directly. Increasing blade speed within the recommended range for the material improves cutting efficiency and resulting texture, provided the blade grade is appropriate for hardened steel. Using a variable-pitch bi-metal or carbide-tipped blade reduces harmonic vibration during the cut, which directly improves band saw cut surface finish. Correct guide alignment, adequate blade tension, and consistent flood coolant application are equally critical. Blade condition must be monitored closely, since a dull blade degrades surface finish rapidly regardless of how well other cutting parameters are optimized.
